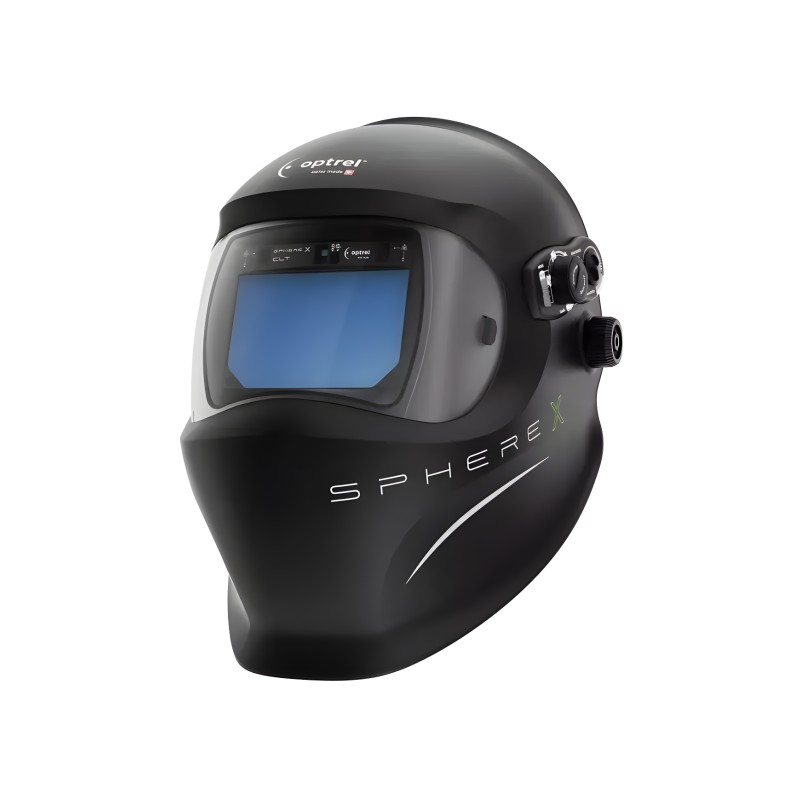

Optrel - Welding Helmet Sphere X CLT black

This auto-darkening welding helmet features 2 sensors.
Solar power + 2 AAA batteries
Viewing area: 98 x 40 mm. Wrap-around shape for optimal head protection.
Switching time light/dark: 1/25000 sec
Return to light state adjustable from 0.1 to 1 second.
Adjustable shade from 9 to 13 for welding.
Grinding mode via internal button.

the "LS" technology applied to the lens of this welding helmet, in addition to its role of protecting against harmful rays, helps increase the penetration rate.
In clear mode, the lens lets more color through to the welder's eye, allowing a more precise rendering of detail by reducing the eye's adaptation effort.
The welder will be more precise in their movements and less fatigued during welding operations.

18-month warranty.

Optical class 1/1/1/2
Weight 475 g

Delivered with:
2 outer protective lenses
1 inner protective lens
1 sweatband
1 comfort cushion on headband.

Essential for safety, the ALIEN XXL+ TRUE COLOR optoelectronic welding helmet protects the welder's face and eyes from UV, infrared and spatter. Fully automatic, the mask switches from the clear state to the darkened state in a fraction of a second, right from arc ignition. Supplied with a headband, it frees the welder's hands and provides all the comfort needed for welding work.

UV/IR protection level: DIN 15
Shade: adjustable from 5 to 13 – True Color technology
Classification: 1/1/1/1
Viewing area: 100 x 90 mm
Reaction time: 0.08 ms
Adjustments: sensitivity, shade, delay
Power supply: solar + 2 CR 2032 batteries
Weight: 560 g
Standards: EN 175 / EN 379

Applications
MMA: 5 to 400 A
TIG: 2 to 300 A
MIG/MAG: 5 to 400 A
Grinding mode (Grind)

Replacement protective lenses:
Outer lens 114 x 133 mm ref. 043893
Inner lens 104 x 96 mm ref. 043596

Launch offer at -50% on limited quantities (X50)

Automatic welding helmet EXTRA large screen
XXL viewing area: 100x97mm
External controls
Construction: PP
True Color technology: more realistic color rendering
Fixed light shade: DIN3
Variable dark shade: DIN 4/5 - 9/9-13
Solar powered + 1 replaceable CR2450 battery
Low battery alarm and test button
High sensitivity: 4 sensors
Fast darkening speed: 0.08 ms
Return to light state from 0.1S to 1S
UV protection: DIN16
Optical class 1/1/1/1
Grinding mode
Weight 550 grams

Applications: MMA 5 to 400 / TIG 2 to 300 / MIG-MAG 5 to 400
Standards: CE / EN 175B / EN 166 / EN 379

This Optrel VEGAVIEW 2.5 welding helmet features 3 sensitivity sensors with the possibility of angle variation via a slider.
Powered by 2 x 3V CR2032 batteries.
The switching time of this helmet is 0.100ms at ambient temperature and 0.070ms at 55°C.
The EN 379 classification of this model is: 1/1/1/2.
Protection level (adjustable shade): 8-12.
Light shade: 2 in grinding mode for maximum clarity.
Weight: 482 g.
Temperature resistance: Welding helmet 220° and cover lens up to 137°.
Suitable for MMA, MIG/MAG and TIG welding as well as plasma cutting. This helmet also features a grinding mode.

Supplied with:
1 headband adjustable in width and length.
Storage bag.
2 x CR2032 batteries.
1 spare outer cover lens.
Warranty card.

2-year warranty with 1 additional year (excluding the battery) if the product is registered within the first 6 months after purchase on www.optrel.com.

The Lincoln Viking 3350 series welding helmets are the premium quality helmets from this manufacturer.

The 4C process gives these helmets the highest protection rating of 1/1/1/1 and a clearer view by minimising the traditional green tint.
A clearer view is a factor in reducing eye fatigue and therefore provides additional comfort for the welder, while also offering increased visibility of the weld pool for higher quality welding.

This welding helmet is available in 3 finishes and comes with a 3-year warranty.

It features 4 sensors, a large 133 x 144 mm screen, an internal shade adjustment from 5 to 13, and a grinding mode.
Supplied with a CR2450 battery and a carrying case.

Possible welding processes / MMA - TIG and pulsed TIG - MIG and pulsed MIG - flux-cored wire as well as gouging and grinding operations.

This Optrel CRYSTAL 2.0 welding helmet features 3 sensitivity sensors.
Power supply: 2 x 3V batteries CR2032.
The switching time of this helmet is 0.100ms at ambient temperature and 0.070ms at 55°C
EN 379 classification of this model: 1/1/1/2
Protection level (adjustable shade): 8-12.
Light shade: 2 in grinding mode for maximum clarity
Weight: 482 g
Temperature resistance: Welding helmet 220° and protective cover lens up to 130°
Suitable for MMA, MIG/MAG and TIG welding as well as plasma cutting. This helmet also features a grinding mode.

Included:
1 headband adjustable in width and length.
Storage bag
2 batteries CR2032
1 Replacement outer protective cover lens
Warranty card.

2-year warranty with 1 additional year (excluding the accumulator) if the product is registered within the first 6 months after purchase on the website www.optrel.com.

S1040 welding helmet

Automatic welding helmet
Fixed light shade: DIN 4
Variable dark shade: DIN 9-13
Viewing field: 930x430 mm
Solar power + Lithium battery (CR2032)
Grinding function
Adjustable headband
Automatically switches from light to dark shade upon arc strike: under 1/10,000 seconds
Return to light state adjustable from 0.15S-0.8S
Dimensions: 57x50x52 cm
Weight: 430 grams

Optical classification standard:
Compliant with standards EN 175B / EN 166 / EN 379

Optrel automatic welding helmet, black color
Light shade 2.5
Auto shades 5-12
Manual shades: 8-12, 4-8
5 high-sensitivity sensors
Progressive auto-darkening filter
Dual-position locking
IsoFit X harness
Weight: 640g

Ideal for:
SMAW – Shielded Metal Arc Welding
MIG / MAG – Wire Arc Welding
High performance GMAW / flux-cored wire
TIG / GTAW / Plasma / Microplasma
Plasma cutting
Grinding work (grinding mode)

Not compatible with laser welding.

Automatic PRO matte black welding helmet True Colour Technology Fixed light shade: DIN3 Variable dark shade: DIN 9-13 Field of view: 95x44mm Solar power + Lithium battery Low battery alarm Number of sensors: 2 Automatically switches from light to dark shade on arc strike: less than 1/30,000 seconds Return to light state from 0.1S to 1S UV protection: DIN16 Optical class 1/1/1/2 Grinding mode Weight 430 grams

This Optrel Helix Quattro welding helmet with flip-up lens is suitable for welding in demanding conditions
Amperage adjustment range: up to 500 A.
The switching time of this helmet is 0.090ms at 20°C and 0.070ms at 55°C
The EN 379 classification of this model is: 1/1/1/1
Protection level (adjustable shade): 4-14
Clear shade: 3 for grinding work.
Weight 640 g
Temperature resistance: Welding helmet 220° and protective screen up to 137°
Suitable for MMA, MIG/MAG and TIG welding as well as plasma cutting. This helmet also features a grinding mode.
Suitable for overhead welding in constrained positions.

Delivered with:
a standard Isofit headband, adjustable in height, width and length to fit any head shape.
Storage bag
Micro USB charging cable
Protective screen
Warranty card.

2-year warranty with 1 additional year (excluding the battery) if the product is registered within the first 6 months after purchase on www.optrel.com.

This Optrel HELIX CLT welding helmet with flip-up lens features 5 sensitivity sensors.
Amperage adjustment range: up to 280 A.
The switching time of this helmet is 0.090ms at 23°C and 0.070ms at 55°C
The EN 379 classification of this model is: 1/1/1/2
Protection level (adjustable shade): 4-12 in automatic mode or 7-12 in manual mode.
Clear shade: 2 in grinding mode for very high clarity
Weight 640 g
Temperature resistance: Welding helmet 220° and protective screen up to 137°
Suitable for MMA, MIG/MAG and TIG welding as well as plasma cutting. This helmet also features a grinding mode.
Suitable for overhead welding in constrained positions.

Delivered with:
a standard Isofit headgear, adjustable in height, width and length to fit any head shape.
Storage bag
Micro USB charging cable
Protective screen
Warranty card.

2-year warranty with 1 additional year (excluding the battery) if the product is registered within the first 6 months after purchase on www.optrel.com.

Automatic wide-screen welding helmet Black colour XL field of view: 100x50mm Construction: PP True Colour Technology Fixed light shade: DIN3 Variable dark shade: DIN 4/5 - 9/9-13 Solar power + 2 replaceable CR2450 batteries Low battery alarm and test button Number of sensors: 4 Automatically switches from light to dark shade on arc strike: less than 1/30,000 seconds Return to light state from 0.1S to 1S UV protection: DIN16 Optical class 1/1/1/1 Grinding mode Weight 550 grams

Application fields: MMA 5 to 400 / TIG 2 to 300 / MIG-MAG 5 to 400 Standards: CE / EN 175B / EN 166 / EN 379

LCD WELDING MASK ERGOTECH DREAM
Essential for safety, the ERGOTECH 5-9/9-13 optoelectronic welding helmet protects the welder's face and eyes from UV, infrared and spatter. Fully automatic, the mask switches from clear to dark state in a fraction of a second, from the moment the arc is struck. Supplied with a Multifit + headband, it frees the welder's hands and provides all the comfort needed for welding work.
This welding helmet features TRUE COLOR technology

UV/IR protection level: DIN 15
Clear shade: 3
Shade: adjustable from 5-9 and 9-13 13
Classification: 1/1/1/1
Field of view: 100 x 67 mm
Reaction time: 0.08 ms
Number of sensors: 4
Return to clear time 0.15>0.8 sec
Adjustments: sensitivity, shade tester, delay, grinding
Power supply: solar + 2 CR 2032 batteries
Weight: 560 g
Standards: EN 175 / EN 379


Applications
MMA: 5 to 400 A
TIG: 5 to 300 A
MIG/MAG: 5 to 400 A
Grinding mode (Grind)

Replacement lenses:
Outer lens 114 x 133 mm (ref. 043893)
Inner lens 103.7 x 69.5 mm (ref. 043695)

Welding helmet with powered air-purifying respiratory protection Protects eyes from IR/UV and the operator's respiratory tract Optimum field of view 75x112mm True-Color Technology - Optical class 1/1/1/1 Lithium battery life of approximately 8 hours - Charging time 1h 3 adjustable airflow rates to suit requirements (from 170 l/min to 230 l/min) 4 solar sensors for very high sensitivity and ultra-fast reaction time (0.08 ms) Fixed light shade: DIN 3 Variable dark shade DIN 9/12-13/15 Digital controls Grinding mode The filter is rated TH3 and retains 99.996% of welding particles Standards EN 166 / EN 175 / EN 379 / EN 12941 Supplied with respiratory protection system, lithium battery, EU charger, harness, flow meter Weight 5 kg

Extended field of view +30%
Realistic color vision
Color: matte black
Light shade: 3.0
Auto shades 5-13
Manual shades: 5-9, 9-13
5 high-sensitivity sensors
Progressive auto-darkening filter
Dual-position locking
IsoFit X harness
Power supply: Solar panels + 2 CR2032 batteries (replaceable).
Weight: 640g
Compatible with Swiss Air respiratory pack

Ideal for:
SMAW – Shielded Metal Arc Welding
MIG / MAG – Wire Arc Welding
High performance GMAW / flux-cored wire
TIG / GTAW / Plasma / Microplasma
Plasma cutting
Grinding work (grinding mode)

Not compatible with laser welding.

- Fadetronic for smooth opening of the anti-glare screen after welding, for fatigue-free work

- Suitable for grinding work
