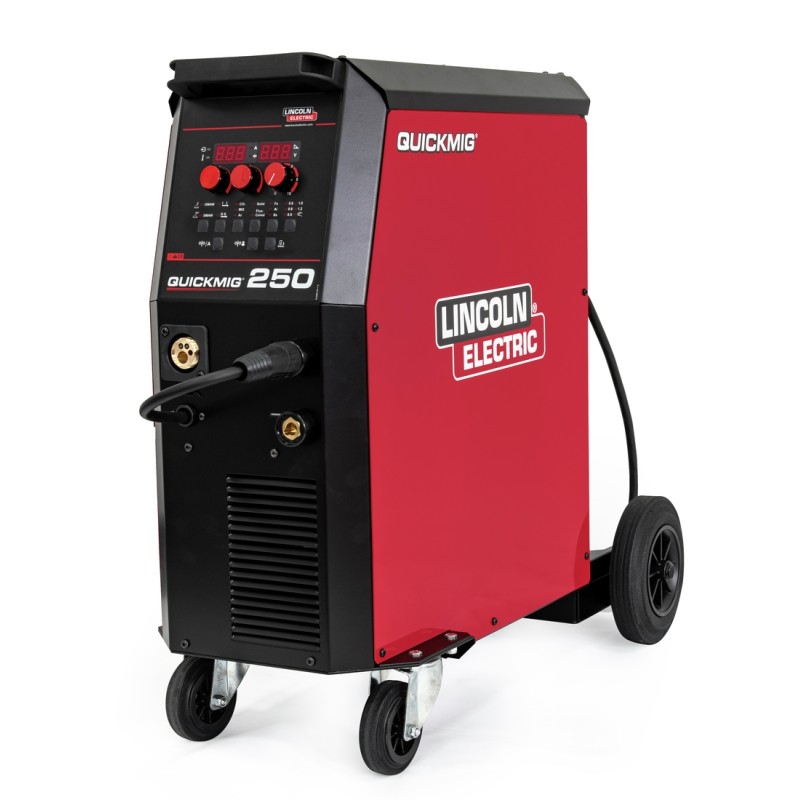

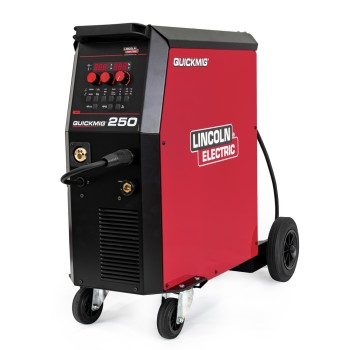

LINCOLN - Quickmig 250 without torch | MIG multi-process unit

Ideal for locksmiths and maintenance workshops
Welds steel, stainless steel and aluminium
MIG duty cycle: 200A at 60% / 180A at 100%
MMA duty cycle: 200A at 60% / 180A at 100%
Current range: 40 to 250A
Combines 3 welding processes in 1 product:
- MIG/MAG with gas (steel/stainless steel wire Ø 0.6/0.9 to 1.2 mm and aluminium 0.8 to 1mm)
- MIG/MAG without gas (flux-cored wire Ø 0.9 to 1.2 mm)
- MMA (basic and rutile electrode up to 5 mm)
4 drive rolls for Ø 200 mm (5 kg) or Ø 300 mm (15kg) spool
Removable MAG torch 250A (2T/4T) 3m (8mm contact tip)
Digital interface with very intuitive adjustment
Compatible with 10kVA generator
Gas cylinder holder for cylinders up to 4m3
Three-phase power supply 400 V - 16 A
Dimensions: 77 x 79x 47 cm - 48kg
IP21 rating

Delivered with:
1 x 250 A MB25 torch 3m
1 x 200 Amp earth clamp 4m
1x User manual
2x 0.8/1 mm drive rolls

Welds steel, stainless steel and aluminium from 0.6 to 6mm in all positions
MIG duty cycle: 150A at 60% / 130A at 100%
MMA duty cycle: 150A at 60% / 130A at 100%
TIG duty cycle: 150A at 60% / 130A at 100%
Current range: 20 to 250A - Voltage: 76V
Combines 4 welding processes in 1 product:
- MIG/MAG with gas (steel/stainless steel wire Ø 0.6 to 1.2 mm and aluminium Ø 0.9 to 1.2 mm)
- MIG/MAG without gas (flux-cored wire Ø 0.9 to 1.2 mm)
- TIG Lift DC current - Lift TIG ignition
- MMA (basic and rutile electrode up to 5 mm)
4 rollers for Ø 200 mm (5 kg) or Ø 300 mm (15 kg) spools
Removable EURO 250A 3m STEEL MIG torch (1.2 mm contact tip)
Digital interface with very intuitive adjustment
Compatible with 9 kVA generator and 100m extension lead
Cylinder support included
Single-phase 230 V - 16 A power supply
Dimensions: 75 x 45 x 80 cm - 45 kg
IP23S rating for outdoor use

Supplied with:
1 x 250 A 3m MB25 torch
1 x 3m earth clamp
2x 0.8-1.0 rollers

MIG Welding - WITH AND WITHOUT GAS -
Welds wire Ø 0.8 and 1mm
4 processes: MIG-MAG with and without gas, MMA and TIG Lift
Uses 1kg (Ø100mm) and 5kg (Ø200mm) spools
Synergy function
LCD screen for very intuitive adjustment
Open circuit voltage: 62V
Power: 50-160A - 6 kVA
Weight: (9kg)
Single-phase 230 V - 16 A power supply
Compact size and carrying handle
Dimensions: 49x22x37cm
2-year warranty

Delivered with:
1 Electrode holder + 16 mm² cable 3 meters long + 1 Ground clamp + 16 mm² cable 3 meters long
MIG torch 2 meters long, 0.8 and 1.00mm roller
1.5-meter power cable

The Lincoln POWERTEC® i units are new compact inverter-type welding machines for MIG-MAG & MMA welding. They are available in two power ratings (250A and 320A) and with two versions of the human-machine interface: the STANDARD version with manual parameter adjustment and the ADVANCED version with a large colour screen, 25 pre-programmed synergic programs and numerous welding aids for the user.

The model shown below is the Powertec 320 A Advanced display

Intuitive adjustment by selecting the process and material thickness
Synergy curves, limits, memories
Display of useful information (ARCFX, welding defects...)
Multilingual navigation menu
Full support menu: technical data, accessories, instructions, safety
7'' color screen
USB connectivity: Simplified software updates and diagnostics thanks to included monitoring functions.

This unit features
INNOVATIVE INTUITIVE INTERFACE
Simple navigation even when wearing welding gloves. V Intuitive adjustment by selecting the process and thickness to weld V Display of useful information V Multilingual navigation menu
MORE FEATURES
AUTO START-UP The machine is immediately ready for use thanks to the best settings already included
USB CONNECTIVITY Simplified software updates and diagnostics thanks to included monitoring functions.
PERFECT SUITABILITY
Optimised wire feeder position: stable arc, no vibration in the torch
4 drive rolls: smooth and steady wire feeding
Developed and tested for work in the most demanding conditions (TRUE HD) to guarantee the reliability you need.
PREMIUM ARC PERFORMANCE
ARC STARTING Instantaneous and repeatable arc starting at will, immediate stabilisation of the welding arc.
STABILITY Exceptional arc stabilisation ensuring smooth metal transfer and reduced spatter.
ARC DYNAMICS Instant adjustment of welding parameters during variations in welding conditions.

READY FOR THE FUTURE
The new European regulation on welding equipment will soon come into force and will require the gradual phase-out of conventional equipment. The new POWERTEC® i family complies with this regulation by offering an energy efficiency equal to or greater than 85% and a standby consumption below the new permitted limits.

Ground clamp and cable length 3 m.

Gas hose length 2 m
Reversible drive roll for steel/stainless steel wire Ø 1 and 1.2 mm
Trolley
Power cable length 5 m

The generators of the POWERTEC® i COMPACT RANGE are designed on the latest Lincoln Electric inverter platform, for optimal MIG-MAG and MMA welding performance with excellent energy efficiency. The range includes: generators delivering 250A, 320A, 380A and 450A, equipped with either a STANDARD screen (i250 & i320 models) or an ADVANCED screen (i250, i320, i380 & i450 models), to best meet customer needs depending on their welding applications. The COOLARC® 26 cooling unit is available in Plug & Play version for the POWERTEC® i380C & i450C ADVANCED.

The model shown below is the Powertec I380 ADVANCED, featuring a high duty cycle: 320A@60% - 240A@100%

Intuitive adjustment by selecting the process and material thickness
Synergy curves, limits, memories
Display of useful information (ARCFX, welding defects...)
Multilingual navigation menu
Comprehensive support menu: technical data, accessories, instructions, safety
7'' colour screen
USB connectivity: Software updates and diagnostics made easier thanks to built-in monitoring functions.

This unit features
INNOVATIVE INTUITIVE INTERFACE
Simple navigation even when wearing welding gloves.
Intuitive adjustment by selecting the process and the thickness to weld
Display of useful information
Multilingual navigation menu
MORE FUNCTIONS
AUTO START The machine is immediately ready for use with the best settings already included
USB CONNECTIVITY Software updates and diagnostics made easier thanks to built-in monitoring functions.
PERFECT SUITABILITY
Optimised wire feeder position: stable arc, no vibration in the torch
4 drive rolls: smooth and jerk-free wire feeding
Developed and tested for work in the most demanding conditions (TRUE HD) to guarantee the reliability you need.
PREMIUM ARC PERFORMANCE
ARC START Instant and repeatable arc ignition on demand, immediate stabilisation of the welding arc.
STABILITY Exceptional arc stabilisation ensuring smooth metal transfer and reduced spatter.
ARC DYNAMICS Instantaneous adjustment of welding parameters during variations in welding conditions.

READY FOR THE FUTURE
The new European regulation on welding equipment will soon come into force and will require a gradual phase-out of conventional equipment. The new POWERTEC® i family complies with this regulation by offering energy efficiency equal to or greater than 85% and a standby consumption below the new tolerated limits.

Earth clamp and cable, length 3 m.

Gas hose length 2 m
Reversible roll for steel/stainless steel wire Ø 1 and 1.2 mm
Trolley
Power cable length 5 m

Portable welding machine with electric transformer
Ideal for home users and maintenance work
Designed for assembling, repairing sheet metal or steel sections
Setting assistance via the SMART table
Duty cycle: 85A@6% - 40°C
Current range: 40 to 110A
Welding NO GAS only for flux-cored wire Ø 0.6 to 0.9 mm
2-roller wire feeder for Ø100 mm spool (1 kg)
Fixed torch 150A 2.2m (0.9mm contact tip)
Single-phase power supply 230 V - 16 A
Dimensions: 34 x 17 x 34 cm - 23.3kg

Supplied with:
- 1 earth clamp (cable 1.6 m / 16 mm²)

This tri-technology unit allows you, with a single machine, to weld in MMA, semi-automatic (MIG-MAG) and TIG modes.

MMA (electrode) and TIG welding solutions are available as options.

As standard, this semi-automatic unit features 17 programmed settings. The user simply needs to select the type of metal and the wire diameter. It is also possible to weld in manual mode by directly adjusting the settings parameters.

This welding unit uses wire on a spool. This welding process allows welding of thin materials (0.6 mm).

Very practical on thin sheets (automotive bodywork, chassis...), it avoids the weld bead restart that occurs when changing an electrode.

With the addition of a shielding gas, this unit enables welding on aluminium, stainless steel and steels in MIG-MAG and MMA mode, and steel, stainless steel and ferrous alloys in TIG mode.

Using a suitable wire of the CU Si3 type, it enables welding of HSS, EHS, UHS steels (automotive bodywork)

MIG welding with gas shielding requires the use of pure Argon gas for aluminium welding or an Argon + CO² mixture for steels and stainless steels.

Special case: For steel, it is possible to weld without gas when using flux-cored wire (which allows, for example, easier outdoor use). In this case, the thickness of the steel sheets must not be less than 1 mm to avoid the risk of burn-through.

This unit uses Ø 200 mm and 300 mm wire spools (flux-cored wire in 2 kg and other wires in 5 and 15 kg). An adapter for Ø 100 mm spools is available as an option.

Upon delivery, this unit includes:
1 Mig 180 A torch (3 metres)
1 earth clamp + 1.9 m cable.
1 roller for steel/stainless steel wire Ø 0.6 and 0.8 mm.
1 steel/stainless steel contact tip Ø 0.8 mm
1 gas hose for refillable cylinder

TIG welding with gas shielding requires the use of pure Argon gas for welding steels, stainless steels, ferrous alloys and copper...

As an option:

It is possible to add an electrode holder with a 3 m cable in order to weld with electrodes from Ø 1.6 mm to 4 mm.

Reference KIT000514

It is possible to add a TIG torch 4 m in length in order to weld in TIG mode using pure Argon shielding gas.

For connecting the unit to gas, it is recommended to use the 804208 fitting.

The Lincoln POWERTEC® i units are new compact inverter-type welding machines designed for MIG-MAG & MMA welding. They are available in two power outputs (250A and 320A) and with two versions of human-machine interface: the STANDARD version with manual parameter adjustment and the ADVANCED version with a large colour screen, 25 pre-programmed synergic programs and numerous welding aids for the user.

The model shown below is the Powertec 250A standard display.

Manual adjustment of voltage and wire feed speed
Quick button for selection of welding process and shielding gas

Quick access to the most frequently used welding parameters (inductance, 2/4 stroke, Run-in, Burn-back)

This unit features
INNOVATIVE INTUITIVE INTERFACE
Simple navigation even when wearing welding gloves. V Intuitive adjustment by selecting the process and the thickness to be welded V Display of useful information V Multilingual navigation menu
MORE FUNCTIONS
AUTO START-UP The machine is immediately ready for use thanks to the best settings already included
USB CONNECTIVITY Software updates and diagnostics made easier thanks to built-in monitoring functions.
PERFECT SUITABILITY
Optimised wire feeder position: stable arc, no vibration in the torch
4 drive rolls: smooth and consistent wire feeding
Developed and tested for work in the most demanding conditions (TRUE HD) to guarantee the reliability you need.
PREMIUM ARC PERFORMANCE
ARC STARTING Instant and repeatable arc starting at will, immediate stabilisation of the welding arc.
STABILITY Exceptional arc stabilisation ensuring smooth metal transfer and reduced spatter.
ARC DYNAMICS Instant adjustment of welding parameters during variations in welding conditions.

READY FOR THE FUTURE
The new European regulation on welding equipment will soon come into force and will require the gradual phase-out of conventional equipment. The new POWERTEC® i family complies with this regulation by offering an energy efficiency equal to or greater than 85% and a standby consumption below the new permitted limits.

Supplied with
Earth clamp and cable length 3 m.
Gas hose length 2 m
Reversible drive roll for steel/stainless wire Ø 1 and 1.2 mm
Trolley
Power cable length 5 m

TECHNOMIG 223 TREO SYNERGIC 230V TELWIN WELDING MACHINE


Inverter multiprocess welding machine MIG-MAG/FLUX/BRAZING/MMA/TIG DC-Lift controlled by microprocessor.
Particularly designed for bodywork applications, it allows immediate use of three different torches, two traditional MIG torches and one spool gun.

This feature enables direct intervention on different materials without needing to replace the torch and wire spool.
The traditional MIG torches are designed for welding steel, high-strength HLE steels, as well as stainless steel and braze-welding of galvanised sheets; the spool gun torch is specifically designed for aluminium even at a significant distance from the generator.

The SYNERGIC quick adjustment of welding parameters, thanks to ONE TOUCH LCD SYNERGY technology, makes the product very easy to use.
ATC technology, Made in Telwin, makes it easy to achieve excellent welds on thin thicknesses thanks to advanced arc control. It is also possible to intervene manually on arc length: this adjustment allows the shape of the weld bead to be modified according to the welder's style.

The ONE TOUCH LCD graphic display enables better reading of all welding parameters.

Characteristics:
- 17 pre-set synergic curves
- LCD screen display of welding parameters
- 2/4 stroke, spot operation selection
- Thermostatic, overvoltage, undervoltage, overcurrent, motor-generator protections (+/- 15%).

Supplied with:

1x Cable with earth clamp (3 metres) 16 mm² - 10/25 connectors
1x MIG torch MB15 STEEL (3 metres) Euro connector
1x MIG torch MB15 ALU (3 metres) - Euro connector
1x SPOOL GUN torch M6
1x Gas hose
1 Set of 2 drive rolls for steel or stainless wire Ø 0.6 / 0.8 mm (mounted on the machine).
User manual

2-YEAR WARRANTY

The POWERTEC® Lincoln i are new compact inverter-type power sources designed for MIG-MAG & MMA welding. They are available in two power ratings (250A and 320A) and with two versions of human-machine interface: the STANDARD version with manual parameter adjustment and the ADVANCED version with a large colour screen, 25 pre-programmed synergic programs and numerous welding aids for the user.

Two models are presented:

Powertec i320 standard (STD) Manual adjustment of welding parameters
Manual adjustment of voltage and wire feed speed
Quick button for welding process and shielding gas selection
Quick access to the most commonly used welding parameters (inductance, 2/4 stroke, Run-in, Burn-back)

Powertec i320 synergic (ADV)
Intuitive adjustment by selecting the process and material thickness
Synergy curves, limits, memories
Display of useful information (ARCFX, welding faults...)
Multilingual navigation menu
Full support menu: technical data, accessories, instructions, safety
7'' colour screen
USB connectivity: Simplified software updates and diagnostics thanks to built-in monitoring functions.

This machine features
INNOVATIVE INTUITIVE INTERFACE
Simple navigation even when wearing welding gloves. V Intuitive adjustment by selecting the process and thickness to be welded V Display of useful information V Multilingual navigation menu
MORE FEATURES
AUTO START-UP The machine is immediately ready for use thanks to the best settings already included
USB CONNECTIVITY Simplified software updates and diagnostics thanks to built-in monitoring functions.
PERFECT SUITABILITY
Optimised wire feeder position: stable arc, no vibration in the torch
4 drive rolls: smooth and jerk-free wire feeding
Developed and tested for work in the most demanding conditions (TRUE HD) to guarantee the reliability you need.
PREMIUM ARC PERFORMANCE
IGNITION Instant and repeatable arc ignition at will, immediate stabilisation of the welding arc.
STABILITY Exceptional arc stabilisation ensuring smooth metal transfer and reduced spatter.
ARC DYNAMICS Instant adjustment of welding parameters during variations in welding conditions.

READY FOR THE FUTURE
The new European regulation on welding equipment will soon come into force and will require the gradual phase-out of conventional equipment. The new POWERTEC® i family complies with this regulation by offering an energy efficiency equal to or greater than 85% and a standby consumption below the new permitted limits.

Supplied with:

Earth clamp and cable 3 m long.
LINCGUN PROMIG 300 torch 4 m long
Gas hose 2 m long
Reversible drive roll for steel/stainless wire Ø 1 and 1.2 mm
Power cable 5 m long

The Lincoln POWERTEC® i units are new compact inverter-type generators for MIG-MAG & MMA welding. They are available in two power ratings (250A and 320A) and with two versions of human-machine interface: the STANDARD version with manual parameter adjustment and the ADVANCED version with a large colour screen, 25 pre-programmed synergic programs and numerous welding aids for the user.

Two models are presented:

Powertec i250A standard (STD) Manual adjustment of welding parameters
Manual adjustment of voltage and wire feed speed
Quick button for selection of welding process and shielding gas
Quick access to the most commonly used welding parameters (inductance, 2/4 stroke, Run-in, Burn-back)

Powertec i250 synergic (ADV)
Intuitive adjustment by selecting the process and material thickness
Synergy curves, limits, memories
Display of useful information (ARCFX, welding faults...)
Multilingual navigation menu
Full support menu: technical data, accessories, instructions, safety
7'' colour screen
USB connectivity: Software updates and diagnostics made easier with built-in monitoring functions.

These units feature:
INNOVATIVE INTUITIVE INTERFACE
Easy navigation even when wearing welding gloves. V Intuitive adjustment by selecting the process and the thickness to weld V Display of useful information V Multilingual navigation menu
MORE FUNCTIONS
AUTO START-UP The machine is immediately ready for use with the best settings already included
USB CONNECTIVITY Software updates and diagnostics made easier with built-in monitoring functions.
PERFECT SUITABILITY
Optimised wire feeder position: stable arc, no vibration in the torch
4 drive rollers: smooth and jerk-free wire feeding
Developed and tested for work in the most demanding conditions (TRUE HD) to guarantee the reliability you need.
PREMIUM ARC PERFORMANCE
ARC START Instant and repeatable arc starting at will, immediate stabilisation of the welding arc.
STABILITY Exceptional arc stabilisation ensuring smooth metal transfer and reduced spatter.
ARC DYNAMICS Instant adjustment of welding parameters during changes in welding conditions.

READY FOR THE FUTURE
The new European regulation on welding equipment will soon come into force and will require the gradual phase-out of conventional equipment. The new POWERTEC® i family complies with this regulation by offering an energy efficiency equal to or greater than 85% and a standby consumption below the new tolerated limits.

Supplied with

Ground clamp and cable length 3 m.
Gas hose length 2 m
Reversible roller for steel/stainless wire Ø 1 and 1.2 mm
Trolley
Power cable length 5 m

KEMPPI - MINAR MIG M 223 with integrated 3M torch

Welds steel, stainless steel and aluminium from 0.6 to 6mm in all positions
MIG duty cycle: 130A at 60% / 110A at 100%
MMA duty cycle: 110A at 60% / 90A at 100%
TIG duty cycle: 135A at 60% / 115A at 100%
Current range: 20 to 200A - Voltage: 76V
Combines 4 welding processes in 1 unit:
- MIG/MAG with gas (steel/stainless wire Ø 0.6/0.8 to 1.6 mm and Alu 0.8 to 1.6mm)
- MIG/MAG gasless (flux-cored wire Ø 0.9 to 1.2 mm)
- TIG Lift DC current - Lift Arc TIG starting
- MMA (basic and rutile electrodes up to 5 mm)
2 drive rolls for spool Ø 100 mm (1 kg) or Ø 200 mm (5kg)
Removable MAG torch 250A (2T/4T) 3m (8mm contact tip)
Digital interface and very intuitive adjustment
Compatible with 9 kVA generator
Single-phase 230 V - 16 A power supply
Dimensions: 25 x 45 x 35 cm - 16kg
IP21 rating

Supplied with:
1 x 250 A steel torch 3m MB25
1 x 200 A earth clamp 2.5m
1 x MMA electrode holder 2m
1x 0.8/1 mm drive rolls

TIG torch optional

Portable welding machine with electric transformer
Ideal for maintenance work
Designed for assembly, repair of sheet metal or profiles in steel and stainless steel
Duty cycle: 90A@20% - 40°C
Current range: 40 to 140A
Combines 2 processes:
- MIG/MAG for workshop welding wire Ø 0.6 – 0.8 mm
- NO GAS for outdoor welding flux-cored wire Ø 0.9 mm
2-roller wire feeder for spool Ø100 mm (1 kg) and Ø200 (5kg)
Fixed torch 150A 2.2m (0.8mm contact tip)
Single-phase power supply 230 V - 16 A
Dimensions: 24 x 42 x 38 cm - 22.6kg

Delivered with:
- 1 earth clamp (cable 1.6 m /16 mm2)

This is the latest generation of welding unit produced by Lincoln, designed to replace transformer-based units which will be banned from manufacture as of 31 December 2022 due to their excessive energy consumption.

This is a welding unit allowing:
- MIG-MAG
- Flux-cored wire with and without gas
- Coated electrodes

Synergic unit (easy to use) with 24 integrated programs

Products in the QUICKMIG range are easy to use and set up.
They enable welding of light structures and small-scale assemblies such as small agricultural equipment.
The range includes generators delivering 250A and 300A, equipped with large LED screens and a user-friendly interface.
As standard, the QUICKMIG features an efficient 4-roller wire feed system regardless of material type, a connector suitable for a MIG torch, wheels and a gas cylinder support at the rear of the trolley.

The Quikmig 300 is a three-phase powered unit (400V -3pH -50/60Hz) with a duty cycle of 230A@60% - 300A@35% - 175A@100%.

Included equipment
• Power cable (3 m) without plug
• Ground cable (3 m)
• Gas hose (2 m)
• Drive rollers for 0.8 and 1.0 solid wire
• User manual on USB key

Options:
- MIG-MAG torch not included.
Available on the site and compatible with this unit model and power: Weldline LGS2 -250
- Adapter for 200 mm spool reference R-1019-125-1/08R available for purchase on our site
- Electrode holder for stick welding

MIG Welding - WITH AND WITHOUT GAS -
Welds wire Ø 0.8 and 1mm
3 processes: MIG-MAG, MMA and TIG Lift
Uses 1kg (Ø100mm) and 5kg (Ø200mm) spools
Synergy function
LCD screen for very intuitive adjustment
Open circuit voltage: 62V
Power: 50-180A - 6 kVA
Weight (9.5kg)
Single-phase 230 V - 16 A power supply
Compact size and carrying handle
2-year warranty
Dimensions: 49x22x37cm

Delivered with:
1 Electrode holder + 16 mm² cable 3 meters long + 1 Ground clamp + 16 mm² cable 3 meters long
MIG torch 2 meters long, 0.8 and 1.00mm roller
1.5-meter power cable
