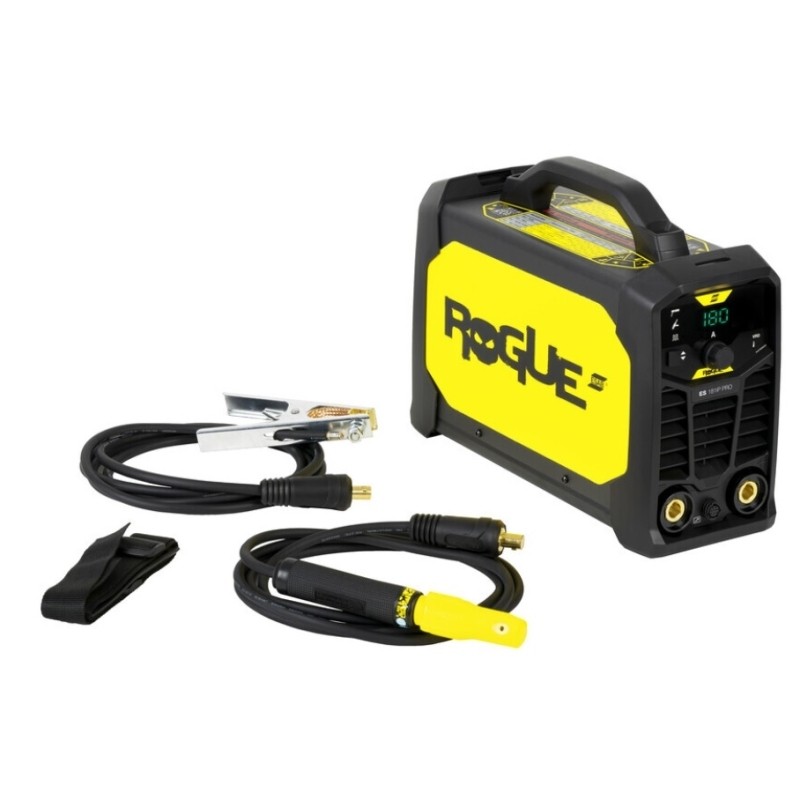

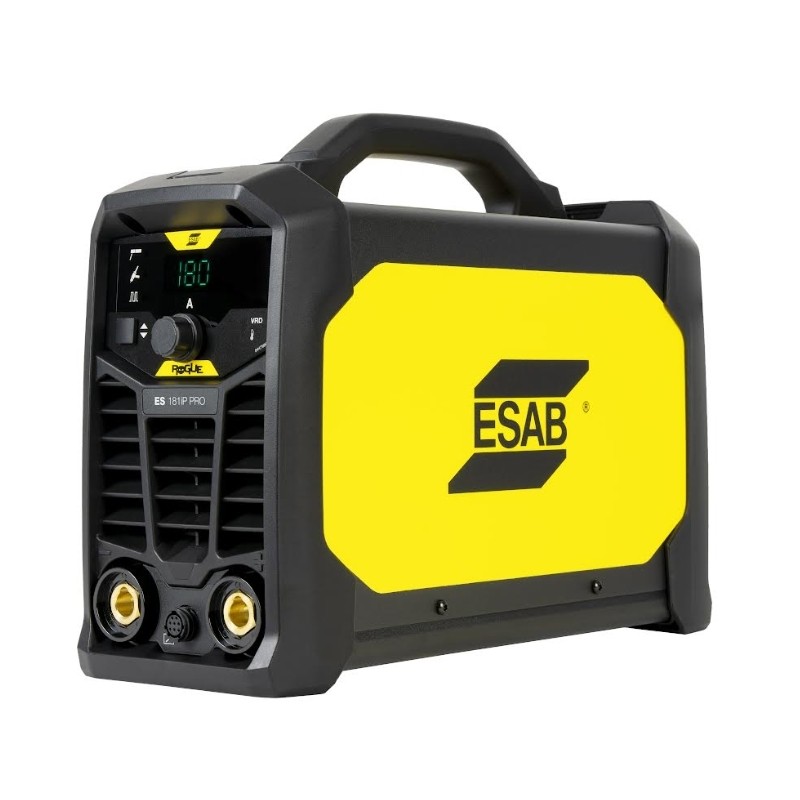

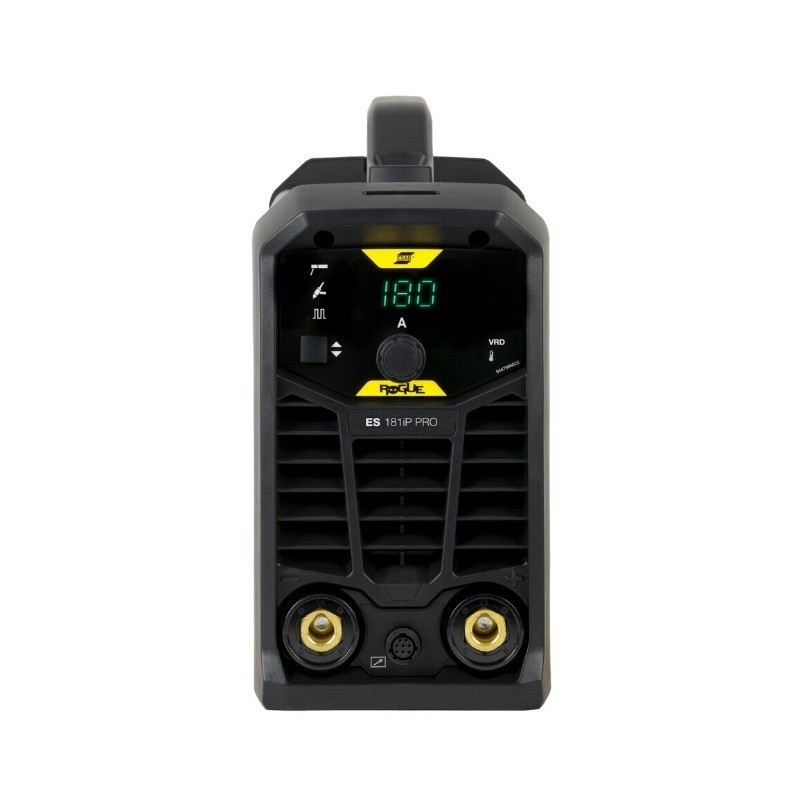

Characteristics of ESAB - ROGUE ES 181iP PRO - MMA Inverter welding machine
| Supply voltage (in Volts) |
50 / 60 Hz - 230 Volts |
Fuse (in Amperes) |
16 A |
| MMA power range (in Amperes) |
20 - 180 A |
TIG welding adjustment range (in Amperes) |
10 - 180A |
| Duty cycle at 40°C MMA |
180 A@25% - 116 A@60% - 90 A @100% |
TIG 40° DC duty cycle |
180 A@25% - 116 A@60% - 90 A @100% |
| Open circuit voltage (in Volts) |
78 |
Possible electrode type |
Rutile - basic |
| Usable rutile electrode diameter (Ø) for the unit (in mm) |
1.6 to 4 mm |
Ø basic electrode usable by the unit (in mm) |
2 to 4 mm |
| Usable Tungsten electrode diameter (Ø) |
1 to 2.4 mm |
Nature of materials to be TIG welded |
steel, stainless steel, copper, cast iron, titanium, nickel |
| Ventilated |
Yes |
Type of output current |
DC |
| Overvoltage thermostatic protection |
Yes +/- 15 % |
Nature of materials to be MMA welded |
Steel - Stainless steel - Cast iron |
| Generator compatible |
Yes |
Welding process |
MMA / TIG LIFT |
| Warranty |
3 years |
Weight in kg |
8,5 |
| Protection rating |
IP23S |
Suggested generator power |
8kW - 10kVA |
| Usage |
Professional
Professional |
TIG ignition type |
TIG Lift |
| Max MMA Power |
200 A Max |
|
|
