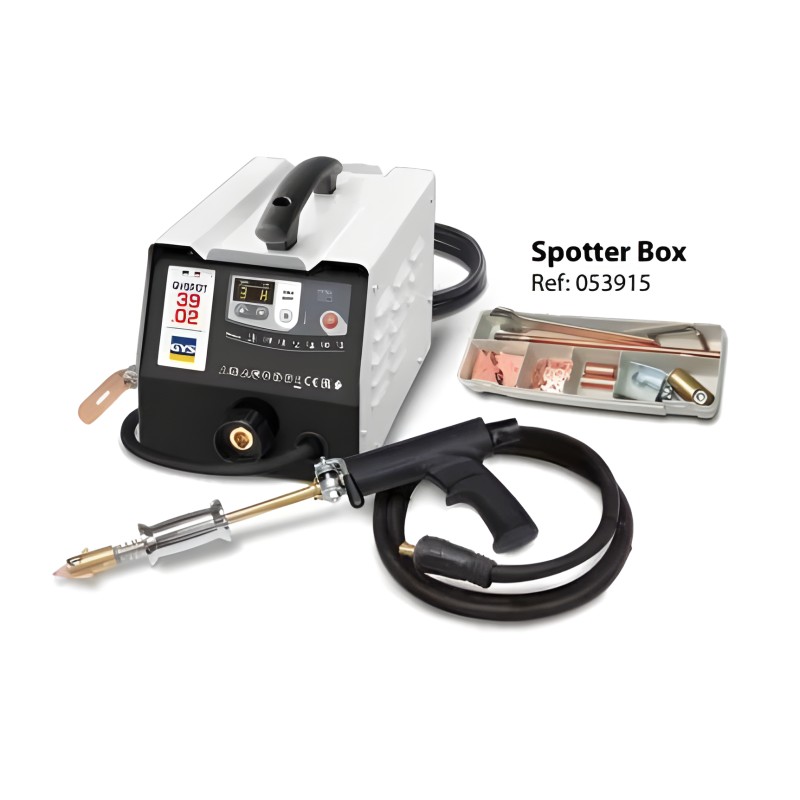

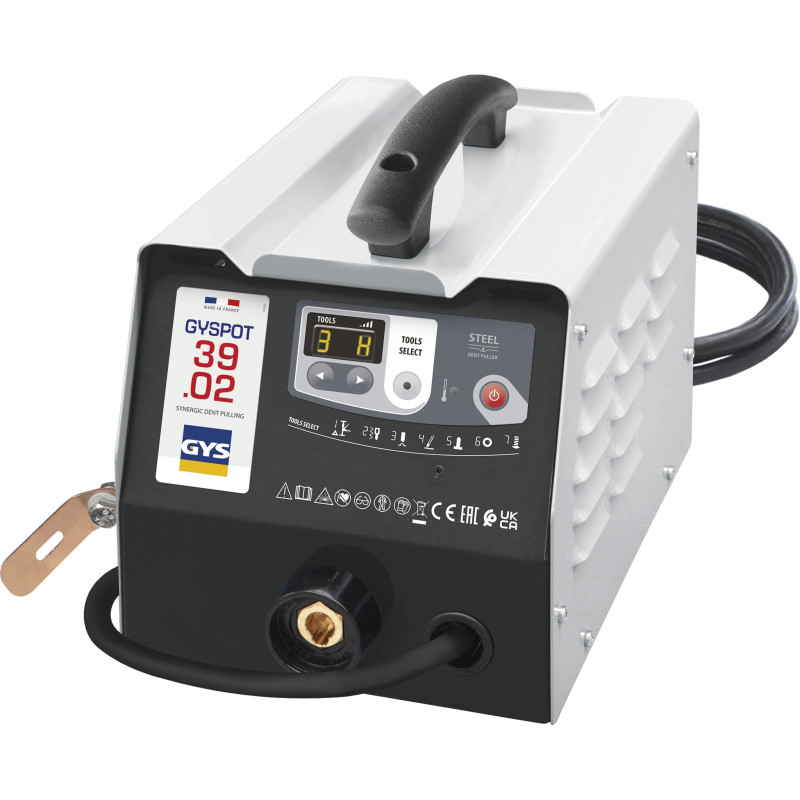

Nail Puller - Straightening Machine GYS Gyspot 39.2

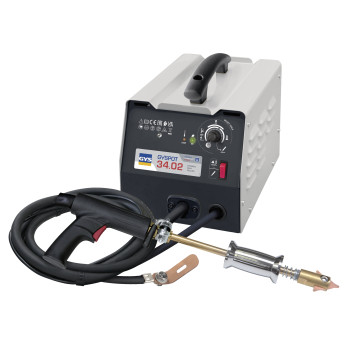

The GYSPOT 34.02 and 34.4 have a power of 3500 A. These dent pullers are tools for dent repair and straightening of steel body panels (hood, door, roof, etc.). They feature several functions that make them complete and versatile tools. Thanks to its low power consumption, this nail puller model is powered by a simple 230 V outlet for the 34.02 model
We offer it in two versions: Single-phase 230 V (reference 065741) and three-phase 400 V (reference 067943)

A MULTI-FUNCTION DENT PULLER
Operating modes: • Welding of stars or rings for steel sheet pulling operations.

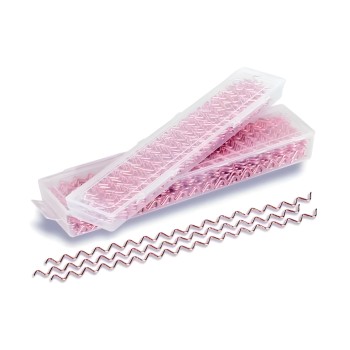

• Welding of corrugated wire, ideal for straightening a rounded profile (e.g.: wheel arch)
• Shrinking, for light impacts and finishing work.
• Use of the graphite pencil. • Welding of steel studs.

EASY TO USE
• Switch to toggle to graphite pencil mode.
• Intuitive, the potentiometer allows you to select both the power and the desired mode.
• Manual, the weld is generated by a simple press of the gun trigger.

It comes with an inertia hammer fitted with a star tip, nail puller + 3 stars - 1 shrinking tip and a ground pad

Cable lengths:
Ground: Section 50mm² - length 1.7 m
Gun: Section 50 mm² - length 2 m

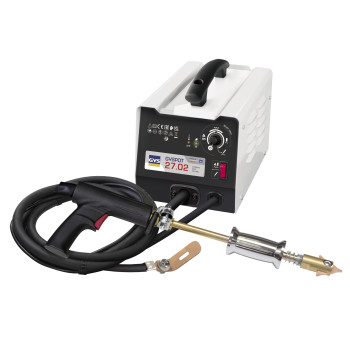

This stud puller with a power of 2600 A allows:
Welding of rings or stars to pull out dented panels
Welding of corrugated wire to straighten a wheel arch or a rounded shape
Shrinking of light impacts and finishing work with a graphite pencil
This straightening unit operates on a 16 A outlet
Delivered with a 1.1 kg slide hammer and star tip stud puller, 3 stars, 1 shrinking tip and 1 ground pad

Easy to use, a switch allows switching to graphite pencil mode
The potentiometer allows selecting both the power and the desired mode
The weld spot is generated by simply pressing the trigger of the gun

Cable lengths:
Ground: 1m70
Gun: 1m80
Power supply: 2m

Optional:
​​​​​​​Consumable box for Gyspot 27.02 reference 053922

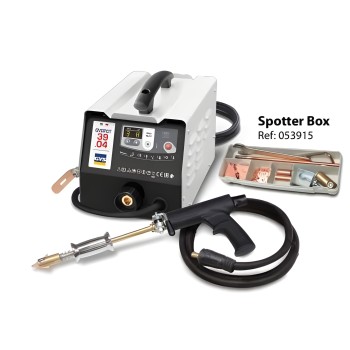

This dent puller has a power of 3800 A
It runs on a 16A outlet and a 400 V power supply

It allows:
The welding of studs, rings or rivets.
It features a "shrinking" function, sheet metal heating pen
It can be used as a nail puller with star attachments

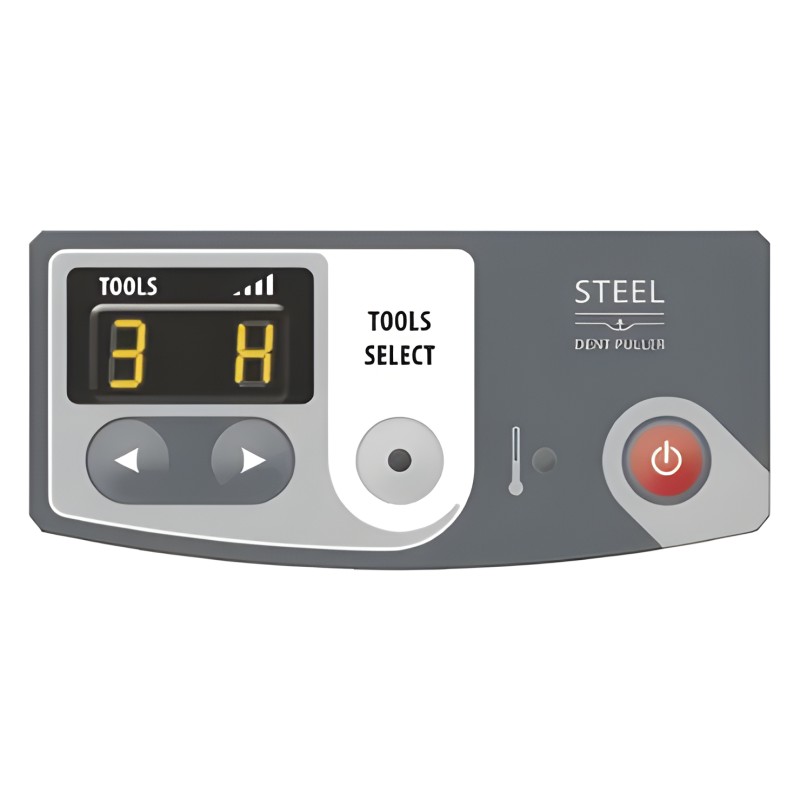

Only 2 parameters to select:
• the power level (among 11 levels)
• the tool used (among 7 tools) => No need to set the time and intensity anymore. Automatic ignition system The weld spot is automatically generated by a simple contact between the tool and the panel to be straightened

It is supplied with a slide hammer + 1 box of accessories

Cable lengths:
Ground: Section 70 mm² - length 2 m
Gun: Section 70 mm² - length 2 m

Welding of M4, M5 and M6 studs by capacitor discharge

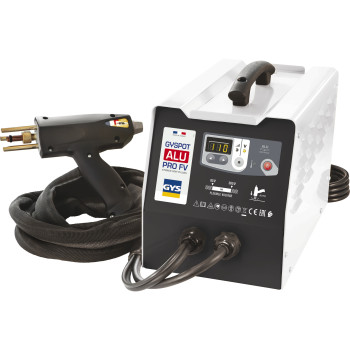

The GYSPOT ALU PRO FV unit is dedicated to straightening ALUMINIUM body panels. The unit welds studs to eliminate dents and impacts (door panel, bonnet, etc.) without stripping the interior

Microprocessor controlled
- Voltage (adjustable from 50 V to 200 V)
- Power (adjustable from 0 to 10)
- Automatic stud presence detection

 Capacitor discharge 66 mF Fast welding (3 milliseconds)

 Automatic gun:
The gun has no trigger; welding is triggered automatically when the tip slides into the gun. The ground is integrated into the gun

Supplied with:
- Automatic gun with 3 integrated ground pins. These ground pins are made of brass and their arrangement provides better stability of the gun during welding
- Aluminium dent repair accessory box (M4 studs, pulling rings, pull rod)
- Chuck for Ø 4 mm studs

The GYSPOT ALU PRO FV is protected against mains overvoltages up to 400 V
Operates at a supply voltage between 85 and 265 V. Thanks to its latest-generation "flexible voltage" switching power supply, the GYSPOT PRO FV can be connected to a 230V - 2A outlet

I² MAX 13,000 A

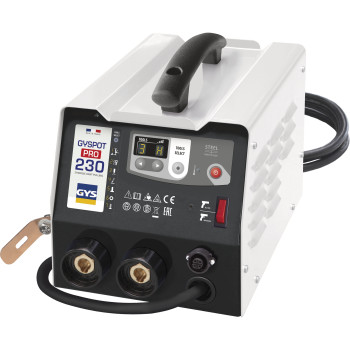

This 3800 A dent puller operates on a 16 A outlet

Only 2 parameters to select:

• the power level (from 11 levels)

• the tool used (from 7 tools)
=> No more need to set the time and intensity

Manual ignition system
The weld spot is generated by pulling the trigger when the tool is in contact with the part to be straightened
Automatic ignition system
The weld spot is generated automatically by simple contact between the tool and the part to be straightened

It comes with:

1 ground clamp 70 mm² (2 m cable)
2 multi-function guns (70 mm² cable, length 2 m + 3 m)
Inertia hammers
Use as nail puller with stars
Stud, rivet and ring welding
Shrinking, pencil and sheet metal heating functions
1 mains power cable 8 m long
1 accessories box including:
20 copper-protected nail puller stars
1 washer electrode
50 washers
1 ground hook
1 carbon electrode
1 star chuck for inertia hammer
1 hex key
1 heating spot electrode
1 electrode for threaded rivets
1 electrode for rivets
50 studs Ø 5 x 18 mm
50 threaded rivets Ø 5 x 18 mm
50 threaded rivets Ø 5 x 12 mm
100 rivets Ø 3 x 3.25 mm
100 rivets Ø 3 x 4.50 mm
