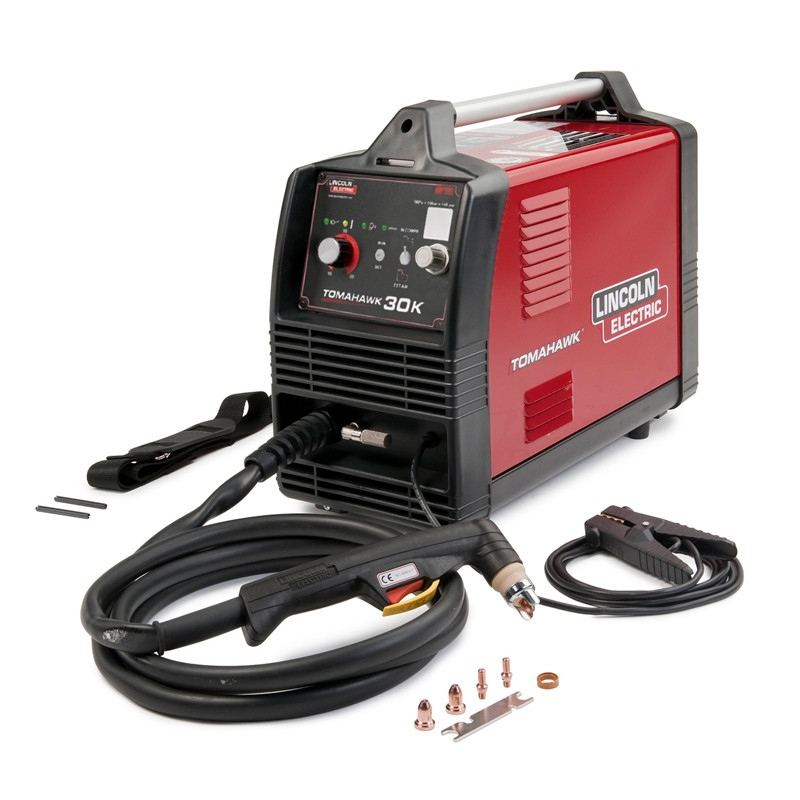

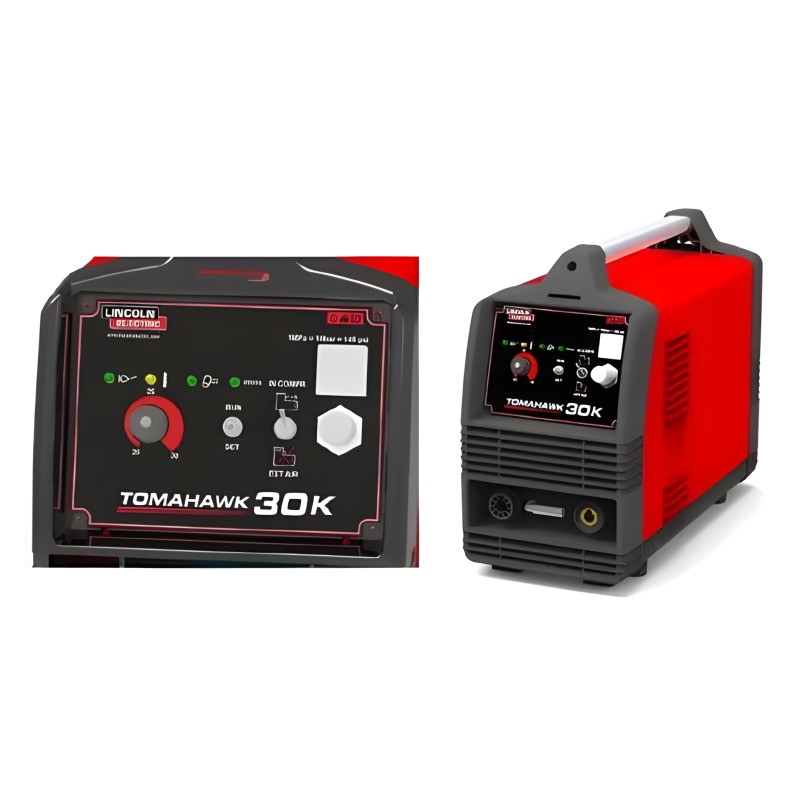

LINCOLN TOMAHAWK 30K | - Plasma Cutter with integrated compressor

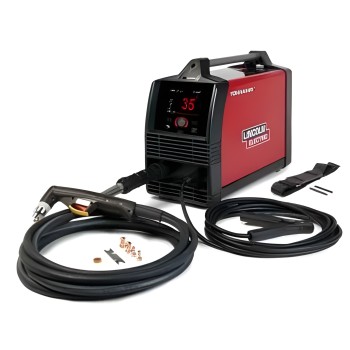

The Tomahawk 45 plasma cutter is light enough to be transported to any job site — simply connect the compressed air and start cutting immediately.
Ideal for maintenance work, small-scale fabrication (e.g. ventilation duct installation), demolition work..

• High performance - Innovative electrode and cutting nozzle design.
• Flexible - a single-phase 230V power supply is sufficient.
• Contact cutting device Reliable plasma arc ignition without high frequency.
• Enhanced safety: The parts-in-place system detects correct installation of torch consumables
• Cutting of various metals – Unalloyed steel, stainless steel, aluminium and others.
  Power supply from a generator is possible

Output current range 15 - 45 A
Duty cycle 40A@60% - 45A@145% - 30A@100%

Example of possible cutting thickness for steel:
Recommended cutting thickness: 16 mm
Clean cutting thickness: 20 mm maximum
Severance cutting thickness: 25 mm maximum

Supplied with

One manual torch length 6 m - EURO connector
Cable and ground clamp

The Cutmaster 50+ plasma cutter is the ideal combination of power and portability for portable plasma cutting machines.
Portable and durable with its three handles and a lightweight, industrial, weather-resistant enclosure. The bright 10.9 cm (4.3-inch) TFT LCD screen with a glove-compatible adjustment knob simplifies use and allows for increased control and flexibility.

The EASYCUT K25 is a high-performance plasma cutter capable of cutting all types of metals up to 8 mm thick, thanks to its integrated air compressor, ideal for outdoor work without a compressed air source. It guarantees precise cuts without distortion, even on painted structures (steel, stainless steel, cast iron up to 8 mm; aluminum and copper up to 6 mm).

Equipped with the HF-free "Arc Pilot" ignition system, it avoids electromagnetic interference. Its secured TPT25 torch (4 m) prevents accidental triggering and disconnects easily for transport. The unit benefits from enhanced protection against overvoltages and is compatible with generators, while offering a controlled noise level (60–70 dB).

The CUTTER 45 CT is a 45 A plasma cutter with a cutting capacity of 25 mm* thickness on a wide range of materials. Designed for use in demanding environments, it features a very robust mechanism and an intuitive control panel.

• Cuts mild steel, stainless steel, hardened steel, HLE steel, aluminium, copper…
• 3 working modes:
- Cutting on solid sheet metal
- Cutting on grid/mesh supports
- Trigger lock
• HF-free ignition, avoiding interference that could damage nearby electronic equipment
• Pre-wired for use on an automatic cutting table.
• Flexible Voltage, the CUTTER operates on a supply voltage between 85 and 265 V.

Delivered without torch.
MT-70 torches for professional use of your cutter, 6 or 12 m long, available as an option on the site.

* Clean cut is 25 mm, separation cut 30 mm and piercing 12 mm when this cutter is fitted with an MT-70 torch

Ground clamp + cable 2 m long, 10 mm² cross-section, supplied with the unit

High-performance plasma cutting.

The Lincoln Electric Tomahawk plasma cutting system focuses on three elements:

• S (Starting) - An innovative and patented starting system that preserves and extends electrode service life.
• P (Performance) - Thanks to a very high-speed helical airflow combined with a special electrode and nozzles designed to concentrate the plasma flow.
• L (Lifetime) - The optimised airflow cools the electrode and nozzle for extended service life.

• Performance - Innovative electrode and cutting nozzle design.
• Service life - The innovative design increases consumable lifespan.
• Flexible - Numerous torch configurations.
• Concentrated plasma flow - Low heat input, less distortion.
• Cutting of various metals – Unalloyed steel, stainless steel, aluminium and others.

Main Features

• advanced arc starting technology, without High Frequency (HF)
• innovative electrode and nozzles
• Extended consumable lifespan
• Reduced heat input, less distortion
• Numerous torch configurations

 Clean cut thickness 25 mm.
Separation cut thickness 30 mm.

Included accessories:
Power cable (3 m)
Manual torch LC 65 (7.5 m)
Cable and ground clamp set (6 m)
Air connection kit
Torch consumable parts kit

Your compressor must have an airflow of 130 litres per minute at a pressure of 5 bar for the proper operation of this cutter.

The Gys CUTTER 70 CT plasma cutter has a cutting capacity of 35 mm thickness on steel and 25 mm on aluminium in separation mode.
Suited to industrial environments, it is highly effective on solid sheets, mesh sheets or painted structures.

Cutting speed superior to oxy-fuel.
Cuts all steels (mild, stainless, hardened, HLE), aluminium, copper, etc.
Optimised machine cooling thanks to the ventilation channel isolating electronic components from dust.
Easy and quick consumable installation for maximum efficiency.

Premium TECMO® torch (leading supplier in Europe).
Superior cut quality: air-cooled torch body providing high arc stability at various operating levels.
Hypertherm®-compatible consumables.
Designed to withstand shocks and heat.
Quick torch connection/disconnection, no tools required, facilitating transport and maintenance.
Easy-to-use trigger mechanism for greater comfort.

Intuitive control panel: - 3 working modes: solid sheet / perforated sheet / lock -
manual air pressure adjustment (4.1 < 6.5 bar) with front panel bargraph.
HF-free ignition to avoid interference that could damage nearby electronic equipment.
Compatible with CNC kit for automated cutting table.

Gouging with maximum removal - Allows significant metal removal (Skid and Nozzle specific options available)

Reinforced casing & anti-slip feet.

Supplied with an MT-70 torch 6 m long and an earth clamp + cable 4 m long - 10 mm² section

This plasma cutter requires connection to a compressed air supply with a flow rate of 185 L/minute.

The CUTTER 105 CT is a high-performance plasma cutter, lightweight (29 kg) and powerful (105 A), designed for intensive use both in the workshop and on site. It provides a cutting capacity of up to 50 mm thickness on steel and offers 5 operating modes: cutting solid sheets, perforated sheets and gouging.

Key performance

• High duty cycle: 105 A at 60%, for maximum productivity.

• Cuts all types of metals (mild steel, stainless steel, hardened steel, HLE, aluminium, copper).

• Concentrated arc for a clean cut with minimal slag.

Suited for harsh environments

• Optimised cooling with electronic dust protection.

• Reinforced casing, anti-shock feet, IP23 protection for outdoor use.

• Compatible with generator (30 kW recommended).

• Can be transported by a single person.

Ease of use

• 5 cutting modes with locked trigger options.

• Manual air pressure adjustment with front panel indicator.

• Air filter with automatic purge to protect the torch.

• HF-free ignition, avoiding electronic interference.

• Integrated consumables compartment.

• Optional analogue CNC kit for cutting tables.

• Easy software update via USB-B port.

High-performance plasma cutting.

The Lincoln Electric Tomahawk plasma cutting system focuses on three elements:

• S (Starting) - An innovative and patented arc starting system that preserves and extends electrode service life.
• P (Performance) - Thanks to a very high-speed helical airflow combined with a special electrode and nozzles designed to concentrate the plasma flow.
• L (Lifetime) - The optimized airflow cools the electrode and nozzle for extended service life.

• Performance - Innovative cutting electrode and nozzle design.
• Service life - The innovative design increases consumable service life.
• Flexible - Multiple torch configurations.
• Concentrated plasma flow - Low heat input, less distortion.
• Cutting of different metals – Mild steel, stainless steel, aluminum and others.

Main Specifications

• advanced arc starting technology, without High Frequency (HF)
• innovative electrode and nozzles
• Improved consumable service life
• Reduced heat input, less distortion
• Multiple torch configurations

 Clean cut thickness 40 mm.
Severance cut thickness 45 mm.

Included accessories:
Power cable (3 m)
LC 105 manual torch (7.5 m)
Ground cable and clamp set (6 m)
Air connection kit
Torch consumables parts kit

Your compressor must provide an airflow of 180 liters per minute at a pressure of 5 bar for proper operation of this cutter.

The Cutmaster 70+ plasma cutter is the ideal combination of power and portability for portable plasma cutting machines. Portable and durable with its three handles and a lightweight, industrial, weather-resistant enclosure. The bright 10.9 cm (4.3-inch) TFT LCD screen with a glove-compatible adjustment knob simplifies use and allows for increased control and flexibility.

This inverter technology plasma cutter with pilot arc contact ignition allows you to cut without deformation all conductive materials such as steel, stainless steel, galvanized steel, aluminum, copper, brass and wire mesh
It is compact and has a small footprint (450 x 182 x H 292 mm) and weight (7 kg)
This cutter enables a clean cut on materials up to 25 mm thick or 20 mm in separation.
It allows sheet metal piercing (see the user manual for this purpose) on supports with a maximum thickness of 4 mm
Consumable change indicator device

The compressor flow rate must be 100 L/minute with a pressure of 4-5 bar for proper operation of the unit.

This cutter is equipped with a warning indicator light for consumable replacement

Supplied with a 4 m torch + ground clamp and 3 m cable

Inverter technology plasma cutter with contact pilot arc ignition.
Enables fast cutting without distortion, cutting through grating, and gouging of all conductive materials, such as steel, stainless steel, galvanized steel, aluminium, copper, or brass for example.

Easy-to-read digital display.
High cutting current stability.
Thermostatic protection against overvoltage and undervoltage, short circuits in the torch or absence of phase and air.
Cutting thickness: 20 - 30 mm depending on materials.
Adjustment range from 20 to 70 A

Options:
1) Interface with automated cutting table
2) Remote control

Requires connection to a compressor delivering 200 l/min of air at a pressure of 4 - 5 bar.

Supplied with:
1 Tecmo torch 6 m long fitted with a 70 A nozzle + 1 spare 70 A nozzle.
1 ground clamp + cable 25 mm² cross-section, 5 m long

Thanks to its integrated compressor, the EASYCUT K35 PFC plasma cutter allows you to cut metal on any construction site where a single-phase power supply is available.
Its PFC technology allows it to operate from 195 V to 265 V and achieve quality cuts even on 100 m construction site extension cords.
Small, lightweight and easy to transport, it is capable of delivering 35 A of power to cut different types of metals up to 15 mm thick in separation cut.

Automatic air regulation adapted to the TPT 35 torch.
Cuts all steels (mild, stainless, hardened, HSLA), aluminum, copper, etc. and cutting speed higher than Oxy-fuel thermal cutting

Very practical on construction sites thanks to its integrated compressor.
Internal air filter with automatic purge to prevent condensation in the torch.
HF-free ignition that avoids interference that could damage nearby electronic equipment.
Storage compartment for consumables.

Ideal for travel and construction sites

Accepts extension cords up to 100 m.
Reinforced body and anti-shock skids.
Compact and easily movable on site.
Protected against overvoltages up to 400 V (PROTEC 400).
Rated IP23S to withstand harsh environments.
Optimized cooling with a ventilation channel that isolates the electronic components from dust.

Delivered with:
a TPT 35 torch with a length of 4 m
a ground clamp with a 10 mm² cross-section cable, length 2 m
Two nozzles and two electrodes

The Cutmaster 30+ combines power and portability, offering a high-performance solution for plasma cutting. Its 4.3" TFT LCD screen and enhanced features ensure precise control and increased flexibility for clean cuts up to 10 mm. Equipped with the SL60 1Torch, you get the complete plasma cutting package.

Recommended piercing and cutting capacity: 10 mm

Maximum edge cutting capacity: 16 mm

Key features:

Suitable for maintenance and bodywork, the EASYCUT 40 plasma cutter easily cuts all types of metal up to 15 mm thick. With a power output of 40 A, it excels at precision cutting at low amperage.

Inverter technology ensuring quality cutting on all steels (mild, stainless, hardened, HLE), aluminium, copper, etc.
Easy and quick consumable installation (Trafimet® standard).

Efficient cutting: air-cooled torch body providing high arc stability at various operating levels.
Easy-to-use trigger mechanism for greater comfort. Designed to withstand shocks and heat.
Quick torch connection/disconnection, no tools required.

Manual air pressure adjustment (2.5 < 6.5 bar) with front panel bargraph.
Automatic torch detection.
HF-free ignition to avoid interference that could damage nearby electronic equipment.

Protected against overvoltage and overcurrent
Torch presence or insufficient air pressure indicator.

→ Requires connection to a compressed air supply delivering 100 l/minute at a variable pressure between 2.5 and 6.5 bar depending on the machine setting.

Supplied with a TPT 40 torch 4 m long and a 10 mm² section earth clamp cable 2 m long.

The CUTTER 105 CT is a high-performance plasma cutter, lightweight (29 kg) and powerful (105 A), designed for intensive use in the workshop and on site. It offers a cutting capacity of up to 50 mm thickness on steel and features 5 operating modes: cutting solid sheets, perforated sheets, and gouging.

Key performance

• High duty cycle: 105 A at 60%, for maximum productivity.

• Cuts all types of metals (mild steel, stainless steel, hardened steel, HLE, aluminum, copper).

• Concentrated arc for a clean cut with minimal slag.

Suitable for harsh environments

• Optimized cooling with electronic dust protection.

• Reinforced housing, anti-shock pads, IP23 protection for outdoor use.

• Compatible with generator (30 kW recommended).

• Transportable by a single person.

Ease of use

• 5 cutting modes with locked trigger options.

• Manual air pressure adjustment with front panel indicator.

• Air filter with automatic purge to protect the torch.

• HF-free ignition, avoiding electronic interference.

• Integrated compartment for consumables.

• Optional analog CNC kit for cutting tables.

• Simple software update via USB-B port.

Premium torch

• Compatible with many torch models (different lengths, angles, etc.).

• Wide range of consumables suitable for all thicknesses.

• Designed to withstand shocks and heat.

• Quick connect/disconnect without tools, making transport and maintenance easier.

• Safety mechanism on the trigger to prevent accidental arc activation.
