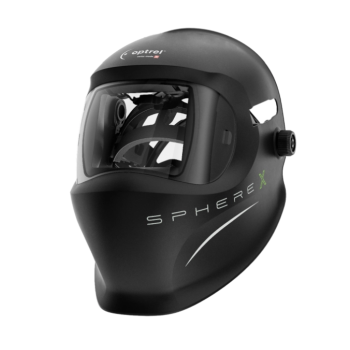

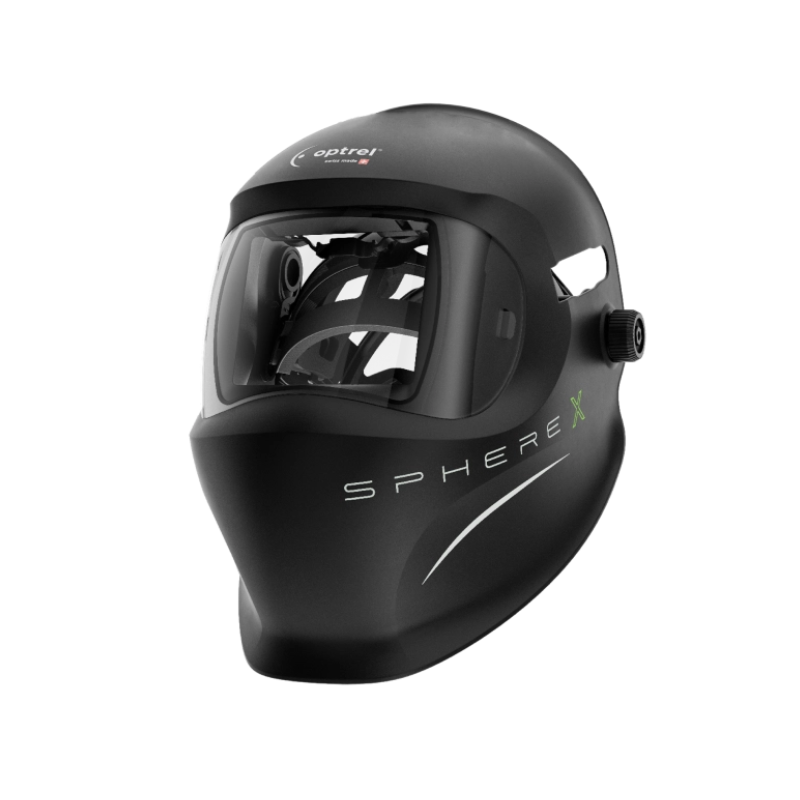

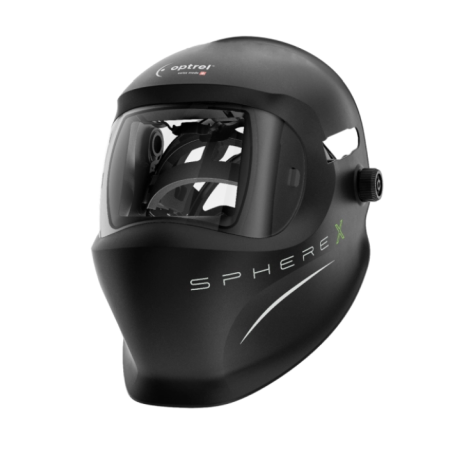

sphereX shell - black: without optoelectronic filter

SACIT P950 welding helmet suitable for MMA welding (stick electrode), semi-automatic welding (MIG-MAG), TIG welding> 40A, grinding work, and flame welding.

Automatically switches to a dark shade in 1/3,000,000 of a second.

It features the TRUE-COLOR system for a more true-to-life color vision and reduced eye strain.

Shade intensity adjustment via external button

Operates with a CR2450 battery (included) + solar battery.

Viewing field: 60 x 100 mm
Filter dimensions: 110 x 90 mm
Number of sensors: 4.
Optical class: 1/1/1/2.
Adjustment ranges: DIN 4/5:8 and 4/9:13
Adjustable headband
Weight: 500 g
Manufacturer warranty: 2 years

Automatic welding headband mask for MMA, MIG-MAG and TIG welding, with adjustable darkening (DIN 4/5 ÷ 9/9÷13).
The LCD liquid crystal filter automatically darkens when the welding arc appears and quickly returns to its transparent state when it stops, eliminating the need to lift and lower the mask at each work break, allowing hands-free operation.
In addition to adjusting the filter sensitivity depending on the welding process, it also features external adjustment of the delay time for switching from dark to light state after the arc stops, depending on the brightness of the workpiece.
Features:
- lightweight and comfortable,
- adjustable auto-darkening filter,
- XL viewing area 100 x 67 mm
- 4 sensors
- dark-to-light delay adjustment,
- battery and solar powered,
- transparent glass filter protection.
Optical class 1/1/1/2

This Optrel CRYSTAL 2.0 welding helmet features 3 sensitivity sensors.
Power supply: 2 x 3V batteries CR2032.
The switching time of this helmet is 0.100ms at ambient temperature and 0.070ms at 55°C
EN 379 classification of this model: 1/1/1/2
Protection level (adjustable shade): 8-12.
Light shade: 2 in grinding mode for maximum clarity
Weight: 482 g
Temperature resistance: Welding helmet 220° and protective cover lens up to 130°
Suitable for MMA, MIG/MAG and TIG welding as well as plasma cutting. This helmet also features a grinding mode.

Included:
1 headband adjustable in width and length.
Storage bag
2 batteries CR2032
1 Replacement outer protective cover lens
Warranty card.

2-year warranty with 1 additional year (excluding the accumulator) if the product is registered within the first 6 months after purchase on the website www.optrel.com.

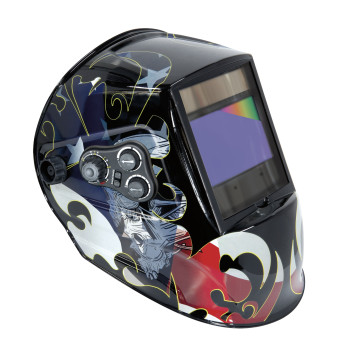

LCD WELDING MASK ERGOTECH DREAM
Essential for safety, the ERGOTECH 5-9/9-13 optoelectronic welding helmet protects the welder's face and eyes from UV, infrared and spatter. Fully automatic, the mask switches from clear to dark state in a fraction of a second, from the moment the arc is struck. Supplied with a Multifit + headband, it frees the welder's hands and provides all the comfort needed for welding work.
This welding helmet features TRUE COLOR technology

UV/IR protection level: DIN 15
Clear shade: 3
Shade: adjustable from 5-9 and 9-13 13
Classification: 1/1/1/1
Field of view: 100 x 67 mm
Reaction time: 0.08 ms
Number of sensors: 4
Return to clear time 0.15>0.8 sec
Adjustments: sensitivity, shade tester, delay, grinding
Power supply: solar + 2 CR 2032 batteries
Weight: 560 g
Standards: EN 175 / EN 379


Applications
MMA: 5 to 400 A
TIG: 5 to 300 A
MIG/MAG: 5 to 400 A
Grinding mode (Grind)

Replacement lenses:
Outer lens 114 x 133 mm (ref. 043893)
Inner lens 103.7 x 69.5 mm (ref. 043695)

This Optrel Helix Quattro welding helmet with flip-up lens is suitable for welding in demanding conditions
Amperage adjustment range: up to 500 A.
The switching time of this helmet is 0.090ms at 20°C and 0.070ms at 55°C
The EN 379 classification of this model is: 1/1/1/1
Protection level (adjustable shade): 4-14
Clear shade: 3 for grinding work.
Weight 640 g
Temperature resistance: Welding helmet 220° and protective screen up to 137°
Suitable for MMA, MIG/MAG and TIG welding as well as plasma cutting. This helmet also features a grinding mode.
Suitable for overhead welding in constrained positions.

Delivered with:
a standard Isofit headband, adjustable in height, width and length to fit any head shape.
Storage bag
Micro USB charging cable
Protective screen
Warranty card.

2-year warranty with 1 additional year (excluding the battery) if the product is registered within the first 6 months after purchase on www.optrel.com.

Launch offer at -50% on limited quantities (X50)

Automatic wide-screen welding helmet XL field of view: 100x60mm Construction: PP True Colour Technology Fixed light shade: DIN3 Variable dark shade: DIN 4/5 - 9/9-13 Solar power + 1 replaceable CR2450 battery Low battery alarm and test button Number of sensors: 4 Automatically switches from light to dark shade on arc strike: less than 1/30,000 seconds Return to light state from 0.1S to 1S UV protection: DIN16 Optical class 1/1/1/1 Grinding mode Weight 550 grams

Application fields: MMA 5 to 400 / TIG 2 to 300 / MIG-MAG 5 to 400 Standards: CE / EN 175B / EN 166 / EN 379

Extended field of view +30%
Realistic color vision
Color: matte black
Light shade: 3.0
Auto shades 5-13
Manual shades: 5-9, 9-13
5 high-sensitivity sensors
Progressive auto-darkening filter
Dual-position locking
IsoFit X harness
Power supply: Solar panels + 2 CR2032 batteries (replaceable).
Weight: 640g
Compatible with Swiss Air respiratory pack

Ideal for:
SMAW – Shielded Metal Arc Welding
MIG / MAG – Wire Arc Welding
High performance GMAW / flux-cored wire
TIG / GTAW / Plasma / Microplasma
Plasma cutting
Grinding work (grinding mode)

Not compatible with laser welding.

- Fadetronic for smooth opening of the anti-glare screen after welding, for fatigue-free work

- Suitable for grinding work

The Optrel Panoramaxx CLT welding helmet features 5 sensitivity sensors.
Amperage adjustment range: up to 280 A.
The switching time of this helmet is 0.090ms at 20°C and 0.070ms at 55°C
The EN 379 classification of this model is: 1/1/1/2
Protection level (adjustable shade): 4-12 in automatic mode or 7-12 in manual mode.
Light shade: 2 in grinding mode for maximum clarity
Weight: 600 g
Temperature resistance: Welding helmet 220° and protective cover lens up to 137°
Compatible with MMA, MIG/MAG and TIG welding as well as plasma cutting. This helmet also features a grinding mode.
Suitable for overhead welding in constrained positions.

Delivered with:
a standard Isofit headgear, adjustable in height, width and length to fit any head shape.
Storage bag
Micro USB charging cable
Protective cover lens
Warranty card.

2-year warranty with 1 additional year (except for the battery) if the product is registered within the first 6 months after purchase on www.optrel.com.

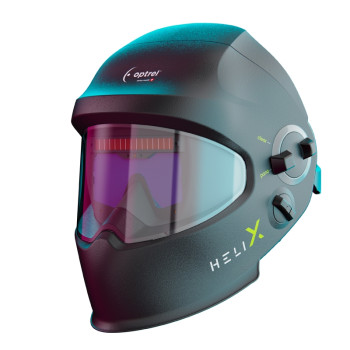

This Optrel HELIX CLT welding helmet with flip-up lens features 5 sensitivity sensors.
Amperage adjustment range: up to 280 A.
The switching time of this helmet is 0.090ms at 23°C and 0.070ms at 55°C
The EN 379 classification of this model is: 1/1/1/2
Protection level (adjustable shade): 4-12 in automatic mode or 7-12 in manual mode.
Clear shade: 2 in grinding mode for very high clarity
Weight 640 g
Temperature resistance: Welding helmet 220° and protective screen up to 137°
Suitable for MMA, MIG/MAG and TIG welding as well as plasma cutting. This helmet also features a grinding mode.
Suitable for overhead welding in constrained positions.

Delivered with:
a standard Isofit headgear, adjustable in height, width and length to fit any head shape.
Storage bag
Micro USB charging cable
Protective screen
Warranty card.

2-year warranty with 1 additional year (excluding the battery) if the product is registered within the first 6 months after purchase on www.optrel.com.

S1040 welding helmet

The Optrel Panoramaxx Quattro welding helmet features 5 sensitivity sensors.
Amperage adjustment range: up to 350 A.
The switching time of this helmet is 0.090ms at 20°C and 0.070ms at 55°C
The EN 379 classification of this model is: 1/1/1/1
Protection level (adjustable shade): 4-13
Light shade: 3 for grinding work.
Weight: 575 g
Temperature resistance: Welding helmet 220° and protective cover lens up to 137°
Compatible with MMA, MIG/MAG and TIG welding as well as plasma cutting. This helmet also features a grinding mode.
Suitable for overhead welding in constrained positions.

Delivered with:
a standard Isofit headgear, adjustable in height, width and length to fit any head shape.
Storage bag
Micro USB charging cable
Protective cover lens
Warranty card.

2-year warranty with 1 additional year (except for the battery) if the product is registered within the first 6 months after purchase on www.optrel.com.

CLT Technology - Exceptional brightness (shade 2.0)
Extended field of view +30%
Realistic color vision
Color: black
Light shade: 2.0
Auto shades 5-12
Manual shades: 8-12, 4-8
5 high-sensitivity sensors
Progressive auto-darkening filter
Dual-position locking
IsoFit X harness
Power supply: Solar panels + 2 CR2032 batteries (replaceable)
EN379 classification: 1-1-1-2
Weight: 640g

Ideal for:
SMAW – Shielded Metal Arc Welding
MIG / MAG – Wire Arc Welding
High performance GMAW / flux-cored wire
TIG / GTAW / Plasma / Microplasma
Plasma cutting
Grinding work (grinding mode)

Automatic PRO matte black welding helmet True Colour Technology Fixed light shade: DIN3 Variable dark shade: DIN 9-13 Field of view: 95x44mm Solar power + Lithium battery Low battery alarm Number of sensors: 2 Automatically switches from light to dark shade on arc strike: less than 1/30,000 seconds Return to light state from 0.1S to 1S UV protection: DIN16 Optical class 1/1/1/2 Grinding mode Weight 430 grams

Essential for safety, the TECHNO 11 TRUE COLOR optoelectronic welding helmet protects the welder's face and eyes from UV, infrared and spatter. Fully automatic, the mask switches from the clear state to the shaded state in a fraction of a second, from the moment of arc strike.
Supplied with a headband, it frees the welder's hands and provides all the comfort needed for welding work.
Welding helmet suitable for arc welding:

MMA (covered electrode) from 10 to 150 A
MIG-MAG (semi-automatic welding) from 10 to 200 A
TIG from 10 to 175 A

Fixed shade: dark shade DIN 11 – light shade DIN 3
Solar powered
Automatically switches from light shade to dark shade upon arc strike. Returns to the clear state as soon as the arc stops.

Viewing area 98 x 35 mm
Adjustable headband
Weight 420 g

Optical classification standard: 1/1/1/1

Compliant with standards EN 175B / EN 166 / EN 379

Automatic welding helmet
Fixed light shade: DIN 4
Variable dark shade: DIN 9-13
Viewing field: 930x430 mm
Solar power + Lithium battery (CR2032)
Grinding function
Adjustable headband
Automatically switches from light to dark shade upon arc strike: under 1/10,000 seconds
Return to light state adjustable from 0.15S-0.8S
Dimensions: 57x50x52 cm
Weight: 430 grams

Optical classification standard:
Compliant with standards EN 175B / EN 166 / EN 379

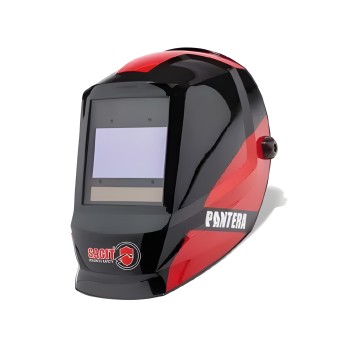

SACIT PANTERA welding helmet suitable for MMA welding (coated electrode), semi-automatic welding (MIG-MAG), TIG welding>6 A, flame welding and grinding work.
The Pantera mask is particularly ideal for low-amperage TIG welding (GTAW) and is able to guarantee maximum performance even in the most extreme welding situations.
Large throat and neck protection

Automatically switches to a dark shade in 1/0.08000 of a second.

Sensitivity and intensity adjustment using the buttons located inside the helmet.

Also suitable for eye protection during grinding operations thanks to the "Grinding" position.

Adjustable sensitivity. Protection level DIN 9-13 for MMA-MIG/MAG/TIG welding operations.
Suitable for flame welding thanks to its dual adjustment range DIN 5-8

This helmet features the TRUE COLOR system for more accurate color reproduction, reducing eye fatigue for the welder, as well as the Stand-by/Sleep-Mode system: the filter switches off when brightness is below 1 uA and activates when light intensity exceeds 10 lux.

Operates with a CR2450 battery (included) + solar battery.

Viewing area 100 x 60 mm
Filter dimension: 114 x 133 mm
Optical class 1/1/1/1
Adjustment ranges 4/ 9:13
Number of sensors: 4
Adjustable headband
Weight 590 g
2-year warranty.
